Grab bars are one of the most effective home modifications for seniors and individuals with disabilities. But their effectiveness depends entirely on correct placement. A grab bar in the wrong location provides little benefit — and in some cases can create a false sense of security that increases risk.
This guide covers the correct grab bar locations for every room in the home, with specific measurements and placement recommendations.
Why Grab Bar Location Matters
A grab bar only helps if it is exactly where the person needs it at the moment they need support. This means thinking carefully about every movement a senior makes throughout the day — getting in and out of the shower, sitting on the toilet, getting up from a chair, navigating stairs — and placing bars to support each of those specific moments.
Generic placement based on guesswork is not enough. Every home and every senior is different. This guide provides the standard recommendations, but always observe the specific senior’s movements and adjust accordingly.
Bathroom Grab Bar Locations
The bathroom is the highest priority room for grab bar installation. It combines wet surfaces, smooth floors, and physically demanding movements into the most dangerous room in the home.

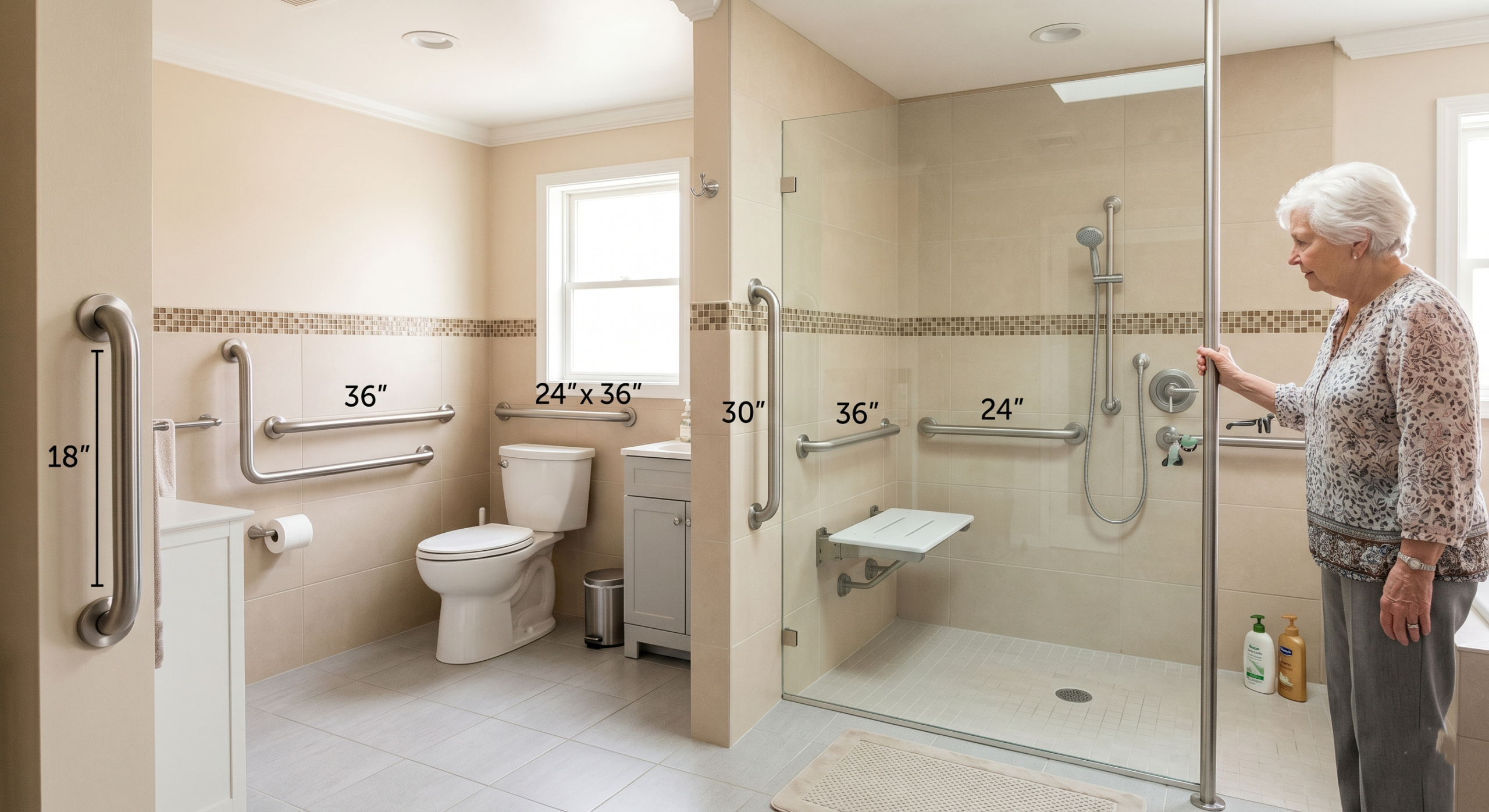

Toilet Area
Side wall bar — Mount a horizontal bar on the wall beside the toilet at 33 to 36 inches from the floor. The bar should be 36 to 42 inches long and run parallel to the floor, extending from behind the toilet seat to in front of it.
Rear wall bar — Mount a horizontal bar on the wall behind the toilet at 33 to 36 inches from the floor. This bar should be 24 to 36 inches long and centred on the toilet.
These two bars work together to support both the sitting and standing movements at the toilet.
Shower and Bath Area
Shower entry bar — Mount a vertical bar on the wall at the shower entry point. Height: 34 to 48 inches from the floor. This bar helps the senior step in and out of the shower safely.
Horizontal shower bar — Mount a horizontal bar on the side wall inside the shower at 33 to 36 inches from the floor. This bar provides support while standing and washing.
Angled shower bar — An angled bar mounted diagonally on the shower wall provides support for both the stepping-in phase and the standing phase. Mount at an angle of approximately 45 degrees with the lower end at 28 to 30 inches and the upper end at 48 to 52 inches from the floor.
Bathtub entry bar — For homes with a bathtub, mount a vertical bar on the wall at the entry end of the bath at 34 to 48 inches from the floor. This helps the senior step over the tub edge safely.
Bathtub side bar — Mount a horizontal bar on the long wall of the bathtub at 33 to 36 inches from the floor. This bar supports the senior while seated in the bath and when standing up.
Bedroom Grab Bar Locations
The bedroom is the second most important location for grab bars. Many falls happen when seniors get in and out of bed, especially at night.
Bedside bar — Mount a vertical or angled bar on the wall next to the bed. Position it so the senior can reach it easily from a lying position and use it to push themselves to sitting and then standing. Height: 28 to 36 inches from the floor at the grip point.
Alternative — A floor-mounted bed safety rail attached to the bed frame provides similar support without wall mounting. This is useful for seniors who cannot have permanent wall modifications made.
Hallway Grab Bar Locations
Long hallways present a fall risk for seniors who tire easily or who need support between rooms.
Hallway handrail — In long hallways, mount a continuous handrail along one wall at 33 to 36 inches from the floor. This allows the senior to steady themselves along the full length of the hallway.
For shorter hallways, a single grab bar at the end of the hallway near a doorway provides a useful anchor point.
Staircase Grab Bar Locations
Staircases require handrails on both sides for maximum safety. This is one of the most critical grab bar installations in any home with stairs.
Height: Mount stair handrails at 34 to 38 inches above the stair nosing — the front edge of each step.
Both sides: Install handrails on both sides of the staircase. Many homes only have one handrail, but seniors need support on both sides, especially when descending.
Full length: Handrails must run the full length of the staircase from top to bottom. A handrail that ends before the bottom step leaves the senior without support at the most dangerous point.
Extension at top and bottom: Extend the handrail horizontally beyond the top and bottom steps by at least 12 inches. This gives the senior something to hold as they transition from the staircase to the flat floor.
Entrance and Exit Grab Bar Locations
Entry doors present a challenge for seniors, particularly those with steps at the entrance.
Door frame bar — Mount a vertical grab bar on the door frame or wall adjacent to the entrance door at 34 to 48 inches from the floor. This helps the senior balance while stepping over a threshold or navigating entry steps.
Exterior step rail — If there are steps at the home entrance, install a handrail on at least one side, preferably both. Height: 34 to 38 inches above the step surface.
Kitchen Grab Bar Locations
The kitchen is often overlooked for grab bar installation, but seniors spend significant time here and the environment presents real fall risks.
Counter support bar — A horizontal bar mounted below the kitchen counter at 32 to 34 inches from the floor gives the senior a gripping point while standing at the counter.
This is particularly helpful for seniors who experience dizziness or fatigue while cooking and need to steady themselves without sitting down.
General Grab Bar Placement Rules
Regardless of room, these rules apply to all grab bar installations:
Height range — The standard grab bar height for most applications is 33 to 36 inches from the floor. Adjust based on the senior’s height and the specific movement being supported.
Stud mounting — Always mount grab bars into wall studs or use load-rated specialist anchors. Never mount into drywall only.
Testing — After every installation, apply firm downward and outward force to the bar. It must not move at all.
Length — Longer bars provide more grip options. When in doubt, choose a longer bar.
Finish — Choose textured or matte finishes for better grip, especially in wet areas.
How Many Grab Bars Does a Senior Home Need?
A fully equipped senior home typically needs:
- 2 bars in the toilet area
- 2 to 3 bars in the shower or bath area
- 1 to 2 bars in the bedroom
- Continuous handrails on all staircases
- 1 bar at the home entrance
- 1 bar in the hallway if it is long
This may seem like a large number, but each bar addresses a specific fall risk moment. The combined effect is a significantly safer home environment.
Professional Installation vs DIY
Grab bars can be installed by a competent DIY person who is confident finding studs and using the correct fixings. However, professional installation is recommended when:
- The walls are tile-covered and require specialist drill bits
- The senior’s weight requires maximum load-rated installation
- There is uncertainty about wall construction or stud location
- Multiple bars are being installed throughout the home
Many local councils and disability organisations offer grab bar installation assistance for seniors at low or no cost. This is worth investigating before paying full contractor rates.
Frequently Asked Questions
What height should handicap grab bars be installed? The standard height for horizontal grab bars is 33 to 36 inches from the floor. Stair handrails should be mounted at 34 to 38 inches above the stair nosing.
How far should a grab bar be from the toilet? The side wall grab bar should be positioned so it is within easy reach from the toilet seat — typically 6 to 8 inches from the centre of the toilet to the bar.
Do grab bars need to be installed by a professional? Not necessarily, but they must be mounted correctly into wall studs or with load-rated anchors. If there is any uncertainty about the installation, hire a professional.
Can grab bars be installed on any wall? Grab bars can be installed on most walls, but the method depends on wall construction. Stud mounting is always preferred. Tiled walls require specialist drill bits and waterproof fixings.
How much weight can a grab bar hold? A correctly installed grab bar should support a minimum of 250 lbs of force in any direction. Most quality grab bars and correct stud installations far exceed this.
Are there grab bars that do not require drilling? Tension-mounted and suction cup grab bars exist but are not reliable enough for fall prevention use. They can release without warning. Permanently mounted bars are always safer.
Conclusion
Correct grab bar placement throughout the home creates a network of support that significantly reduces fall risk for seniors and individuals with disabilities. The bathroom remains the highest priority, but bedrooms, hallways, staircases, and entrances all benefit from strategically placed grab bars.
Follow the standard height recommendations, always mount securely into structural supports, and test every installation before use. A properly equipped home gives seniors the confidence to move safely and independently throughout their daily lives.
